Drawing With Patterns

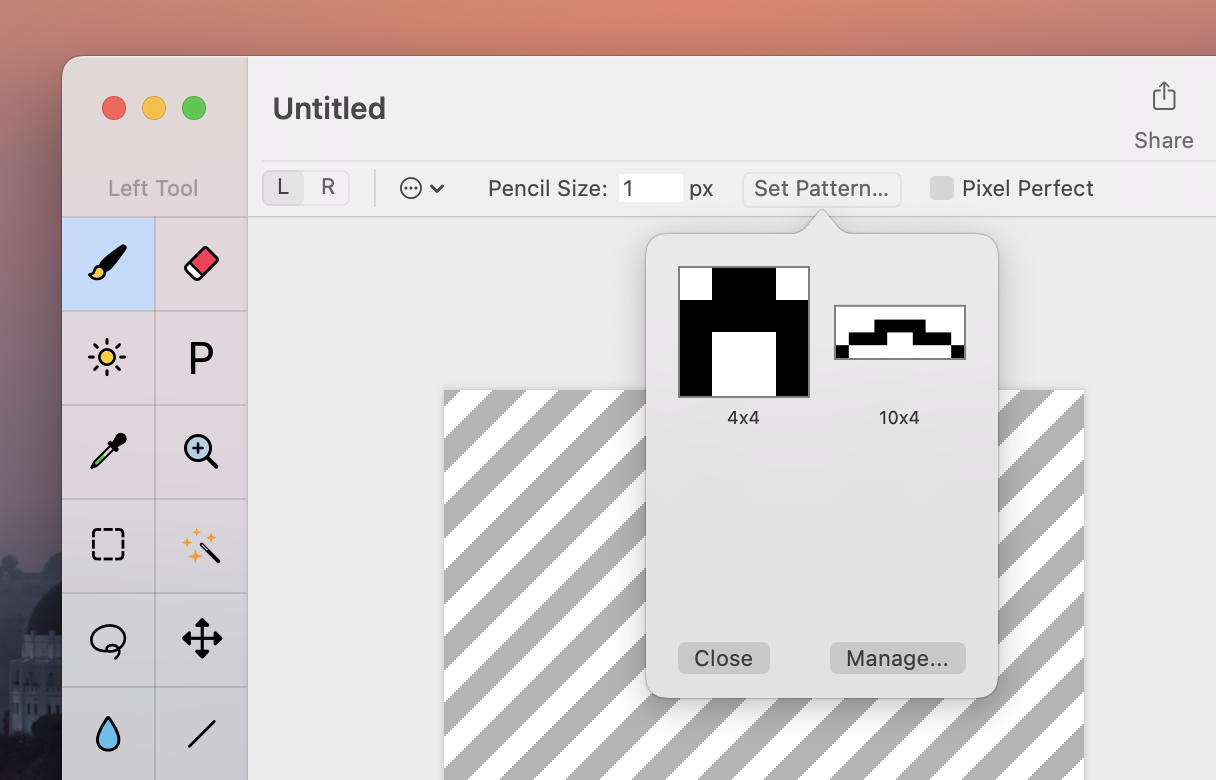

Pixen allows you to draw with a pattern of bits instead of merely a square pixel. Patterns are supported for the Pencil, Eraser, and Line tools. To get started, click the Set Pattern button in tool properties and choose a pattern.

You can use the Manage button to bring up the Pattern Editor. You can also get to the editor via the top-level Window menu. In the editor, you can create, import, delete, and share patterns.

To create a new pattern, click the + button. Then select New Pattern, and enter a size in pixels. Use the canvas on the left to draw your 1-bit pattern. When you're done, the pattern will be available to use with supported tools.

If you already have a pattern saved as a 1-bit image, you can import it with the Import Pattern from 1-bit Image command. The Invert button allows you to easily invert the colors in the pattern if you would like them flipped.

To remove a pattern, right-click on it in the patterns grid and select Delete. To duplicate a pattern, right-click on it and select Duplicate.

You can share patterns with the Share button via system sharing services such as Messages. You can also use the Upload to Pixen Gallery option to publish your pattern on the web and submit it for inclusion in the Pixen Gallery. It can then be made available to the greater Pixen community. Lastly, you can export a pattern to disk by right-clicking on it and selecting Export.

To learn more about Pixen or purchase the app, visit https://pixenapp.com.
